GAS GENERATOR AND PURIFIERS

Hydrogen, Nitrogen and Zero Air generators for your analytical applications,
e.g. gas chromatography, LC-MS, TOC and many other applications.Use our tool to help you select the right solution for your Lab.

Select the required gas for your application.

Hydrogen

The technology Claind uses for electrolysis is:- PEM with solid electrolyte:
The most recent technology which is normally used in generators for lab applications that require the purest hydrogen.- Multi-layer electrodes:
Prior to PEM but very stable and less demanding in terms of water supply purity; it is usually used to produce hydrogen for applications on GC FID in environmental or process analyses.Select your desired maximum working flow:

Hydrogen Results

Kindly enter your email address to view your result.

Hygen 200

• Hydrogen generator designed for Carrier Gas in GC, GC-MSD and “FAST GC”
• UHP Purity that meets the needs required by the track analysis
• Security system with audible alarms, display messages and automatic production stop in case of gas leaks
• Availability of the automatic switch with inert gas when Hydrogen alarm
• Parallel connection from series up to 4 stacked generators
• Modular configuration
• Equipped with the innovative HT PEM cell for high purity
• Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
• Maintenance: simple substitution of the resin and drier, only after 50.000l of H2 produced
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of operational status
• Hydrogen production proportional to consumption, with the minimum gas storage within the instrument
• CPU equipped with LAN connection

HYDROGEN RESULTS

Kindly enter your email address to view your result.

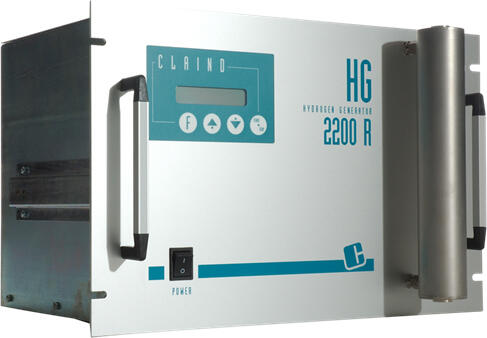

HG 2200 R

• Hydrogen Generator with a flow rate of 200 Nml/min
• Purity better than 99,999%*
• Outlet pressure: 1 - 6 bar
* max O2 content 0,1 ppm when used with additional purifier

HYDROGEN RESULTS

Kindly enter your email address to view your result.

Hygen 400

• Hydrogen generator designed for Carrier Gas in GC, GC-MSD and “FAST GC”
• UHP Purity that meets the needs required by the track analysis
• Security system with audible alarms, display messages and automatic production stop in case of gas leaks
• Availability of the automatic switch with inert gas when Hydrogen alarm
• Parallel connection from series up to 4 stacked generators
• Modular configuration
• Equipped with the innovative HT PEM cell for high purity
• Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
• Maintenance: simple substitution of the resin and drier, only after 50.000l of H2 produced
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of operational status
• Hydrogen production proportional to consumption, with the minimum gas storage within the instrument
• CPU equipped with LAN connection

HYDROGEN RESULTS

Kindly enter your email address to view your result.

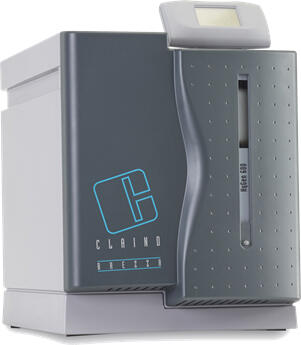

Hygen 600

• Hydrogen generator designed for Carrier Gas in GC, GC-MSD and “FAST GC”
• UHP Purity that meets the needs required by the track analysis
• Security system with audible alarms, display messages and automatic production stop in case of gas leaks
• Availability of the automatic switch with inert gas when Hydrogen alarm
• Parallel connection from series up to 4 stacked generators
• Modular configuration
• Equipped with the innovative HT PEM cell for high purity
• Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
• Maintenance: simple substitution of the resin and drier, only after 50.000l of H2 produced
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of operational status
• Hydrogen production proportional to consumption, with the minimum gas storage within the instrument
• CPU equipped with LAN connection

Zero Air

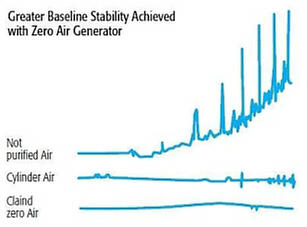

Claind has developed a catalytic reactor specifically for air filtration that is ideal for eliminating impurities.As a matter of fact, the Platinum Palladium HC system allows the hydrocarbons (HCT < 0.1 ppm) to be completely removed at low catalysis temperatures for a stable, noise-free base line.

ZERO AIR RESULTS

Kindly enter your email address to view your result.

AIRGEN TOC

UHP Air generator• High-efficiency Palladium-Platinum scrubber for removal of HCTs < 0,1 ppm for a stable and interference-free baseline
• Parallel connection up to 4 stacked generators with tower configuration
• Modular cofiguration
• High-efficiency final filter for removal of residual CO2
• Facility for integration with a Brezza series dedicated air compressor (AirComp)
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of the operational status. The CPU includes also an Ethernet output for the connection to PCs

We also provide suitable air compressors for your generator:The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

ZERO AIR RESULTS

Kindly enter your email address to view your result.

AIRGEN GC

Zero Air Generator ideal for NPD, FID, FPD
• Parallel connection up to 4 stacked generators with tower configuration
• Modular configuration
• Equipped with PSA dryer
• Able to feed up to 8 FIDs
• Platinum Palladium HC system for HCT integral removal < 0,1 ppm for an absolutely stable and interference free baseline• Easy integration with Brezza series dedicated air compressor (Compressed Air Generator AirComp)
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units) which allows the monitoring of the operational status. The CPU includes also an Ethernet output for the connection to PCs

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

ZERO AIR RESULTS

Kindly enter your email address to view your result.

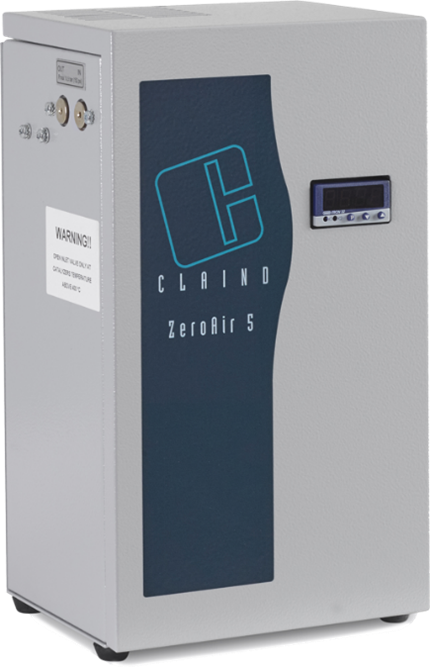

zero air 5

Zero air generator• The excellent solution for FID and FPD with guaranteed an absolutely stable disturbance-free baseline
• It is the expression of simplicity and requires only to be switched on in order to supply Zero Air HCT free
• Economic, connected at 4 FID the payback is less than 1 year
• Dual Bench-top/Wall-mounting version
• High efficiency Palladium-Platinum HC system for removal of HCTs < 0,1 ppm at catalizing low temperature for an absolutely stable and disturbance–free baseline
• ZeroAir series is able to serve from 14 up to 55 FID
• Easy integration with a Brezza series dedicated air compressor (AirComp)
• Catalyzer Temperature monitor included
• Possibility of parallel connections

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

ZERO AIR RESULTS

Kindly enter your email address to view your result.

zero air 20

Zero air generator• The excellent solution for FID and FPD with guaranteed an absolutely stable disturbance-free baseline
• It is the expression of simplicity and requires only to be switched on in order to supply Zero Air HCT free
• Economic, connected at 4 FID the payback is less than 1 year
• Dual Bench-top/Wall-mounting version
• High efficiency Palladium-Platinum HC system for removal of HCTs < 0,1 ppm at catalizing low temperature for an absolutely stable and disturbance–free baseline
• ZeroAir series is able to serve from 14 up to 55 FID
• Easy integration with a Brezza series dedicated air compressor (AirComp)
• Catalyzer Temperature monitor included
• Possibility of parallel connections

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

nitrogen

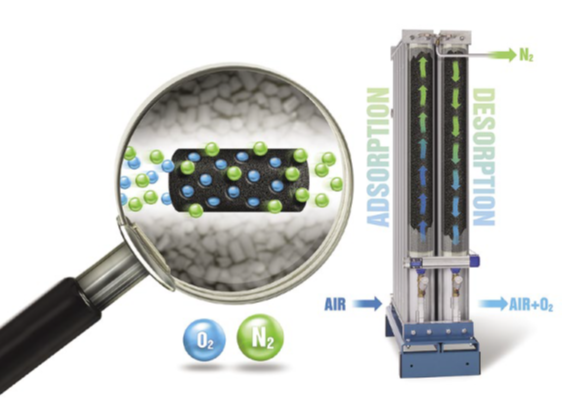

For producing nitrogen, PSA (Pressure Swing Adsorption) technology is utilized. The PSA system consists of two beds of CMS (Carbon Molecular Sieve), alternatively pressurized and depressurized. Each bed can consist of one or more columns.Compressed air, which has been pre-treated to eliminate dust and humidity, enters the base of the first active bed and flows through the CMS. Oxygen, carbon dioxide and other polluting substances in the air are trapped, but the nitrogen moves through the bed and exits at the top of the column towards a storage tank. After a certain time has elapsed, the by-now-saturated active bed is depressurized to be regenerated, while the cycle resumes symmetrically on the second bed.In order to provide our customers with top of the line solutions and innovation, we have further improved the PSA technology, designing and registering the exclusive FAST PURITY® international patent that guarantees:
- Maximum nitrogen purity within a few minutes after turning on.
- Increase in the generator’s life span.
- Less mechanical stress.
- Greater output.
- Less air and electrical energy consumption.Select the required Nitrogen purity:

99.9995 %

Select your desired maximum working flow:

NITROGEN RESULTS

Kindly enter your email address to view your result.

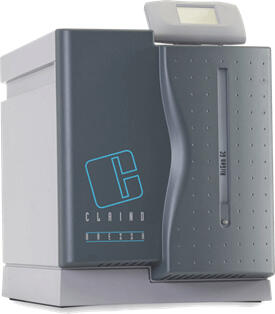

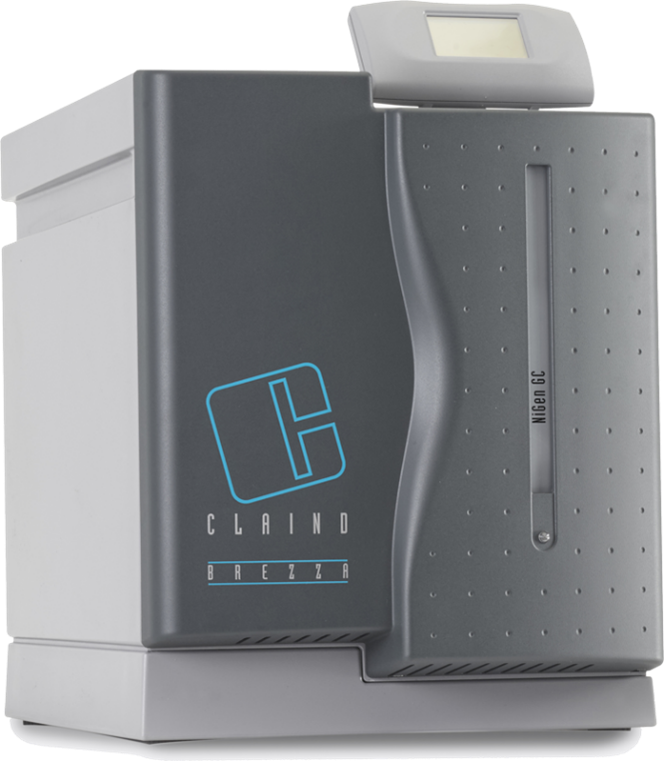

NiGen GC

Nitrogen generator• High purity nitrogen guaranteed by the PSA technology
• CLAIND "Fast Purity" patent which allows the delivery of high purity nitrogen in a very short time
• UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
• Parallel connection up to 4 stacked generators with tower configuration
• Modular configuration
• Ability to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs or 5 S/S
• Facility for integration with a Brezza series dedicated air compressor (AirComp)
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of operational status

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

NITROGEN RESULTS

Kindly enter your email address to view your result.

NiGen GC-HC

Nitrogen generator• High purity nitrogen guaranteed by the PSA technology
• CLAIND "Fast Purity" patent which allows high purity nitrogen delivery in a very short time
• UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
• Parallel connection up to 4 stacked generators with tower configuration
• Modular configuration
• Ability to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs or 5 S/S
• Facility for integration with a Brezza series dedicated air compressor (AirComp)
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units) which allows the monitoring of operational status

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

NITROGEN RESULTS

Kindly enter your email address to view your result.

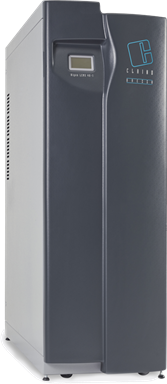

NiGen hf-1

Nitrogen generator• PSA molecular sieve technology dedicated to offer UHP Nitrogen for GC and ICP
• CLAIND "Fast Purity“ patent which allows the high-purity nitrogen delivery within 30 minutes
• Built-in compressor with two 50 l. internal tanks, one for compressed air and the other for nitrogen
• Highly reliable Air compressor with maintenance required only after 14,000 hours of work
• 2 gas outlets : available: UHP Nitrogen and Oil Free Air
• CPU with Touch Screen Display connectable with CAN-BUS to the generators
(up to 32 units) which allows the monitoring of operational status.
• Equipped with full turn wheels for easy moving

99.99 %

Select your desired maximum working flow:

NITROGEN RESULTS

Kindly enter your email address to view your result.

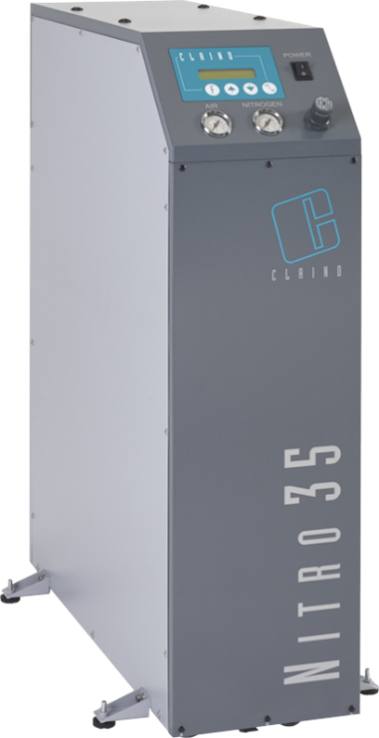

Nitro 35

Nitrogen generator• Nitrogen generation through PSA CLAIND technology, at the highest purity requested from LC/MS analyzers or Sample Preparation
• The generator operates automatically 24 hours a day, 365 days a year
• 24 liters internal tank which allows to extend stand-by periods
• FAST PURITY Patent Technology to supply High purity grade tailored for LCMS: O2 up to 0,1% H2O up to – 55°C Dew Point and HC Vapours < 0,01 ppm
• Easy to use keypad, which allows the monitoring of the operational status, the consumables estimated life and the maintenance requirement
• Small unit equipped with full turn wheels for easy moving

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

NITROGEN RESULTS

Kindly enter your email address to view your result.

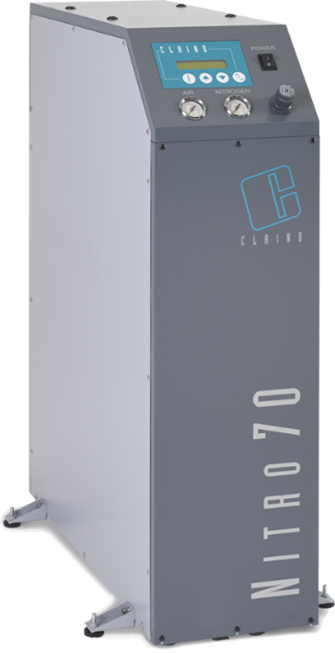

Nitro 70

Nitrogen generator• Nitrogen generation through PSA CLAIND technology, at the highest purity requested from LC/MS analyzers or Sample Preparation
• The generator operates automatically 24 hours a day, 365 days a year
• 24 liters internal tank which allows to extend stand-by periods
• FAST PURITY Patent Technology to supply High purity grade tailored for LCMS: O2 up to 0,1% H2O up to – 55°C Dew Point and HC Vapours < 0,01 ppm
• Easy to use keypad, which allows the monitoring of the operational status, the consumables estimated life and the maintenance requirement
• Small unit equipped with full turn wheels for easy moving

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

NITROGEN RESULTS

Kindly enter your email address to view your result.

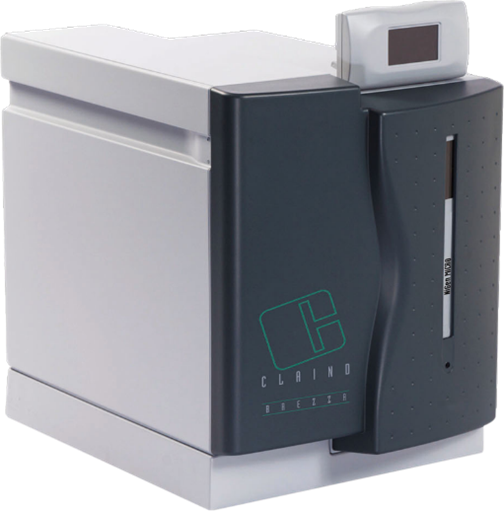

Nigen micro

Nitrogen generator• High purity nitrogen guaranteed by the PSA technology
• CLAIND "Fast Purity" patent which allows the delivery of high purity nitrogen in a very short time
• Parallel connection up to 4 stacked generators with tower configuration
• Modular configuration
• Facility for integration with a Brezza series dedicated air compressor (AirComp)
• CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), which allows the monitoring of operational status

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

99.9 %

Select your desired maximum working flow:

NITROGEN RESULTS

Kindly enter your email address to view your result.

NiGen LCMS 40-1

Nitrogen generator ideal for Liquid Chromatography - Mass Spectrometry• Designed to satisfy the needs of all LCMS analyzers on the market
• The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremely pure nitrogen output (phthalate-free)
• Highly reliable Air compressor with maintenance required only after 16,000 hours of work
• Able to supply up to 4 LC-MS analyzers
• 40-1 version with special built-in full oil-free compressor
• The 50 liter each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
• CPU with Touch Screen Display which allows the monitoring of operational status

NITROGEN RESULTS

Kindly enter your email address to view your result.

NiGen LCMS 100

Nitrogen generator
• Designed to satisfy the needs of all LCMS analyzers on the market
• The PSA technology with molecular sieves, used in the NiGen series, are drastically reducing the O2 and H2O residual but also the HC presence in the air, offering an extremely pure nitrogen output (phthalate-free)
• Highly reliable Air compressor with maintenance required only after 16,000 hours of work
• Able to supply up to 4 LC-MS analyzers
• The 50 liter each of air and nitrogen internal storage tanks mean less frequent air compressor starts, hereby reducing noise levels and maintenance
• CPU with Touch Screen Display which allows the monitoring of operational status

We also provide suitable air compressors for your generator:
The AirComp series consists of two compressed air generators specifically designed for the lab.
In fact they were created to be connected inside the module.
This is why we rather call them compressed air generators, than compressors.
Because they originate from an idea much more akin to that of lab generators than to that of industrial compressors.AirComp: Oil free dry compressed air, suitable for NiGen GC/ GC-HC; AirGen GC/ TOC; Nigen MICRO, and Zero Air.OLYMPIA A200-1: Oil free dry compressed air with electronic speed control, suitable for
NITRO 35/ 70; LCMS- 100 and general LAB use.

96 - 99,5 %

Select your desired application gas:

NITROGEN RESULTS

Kindly enter your email address to view your result.

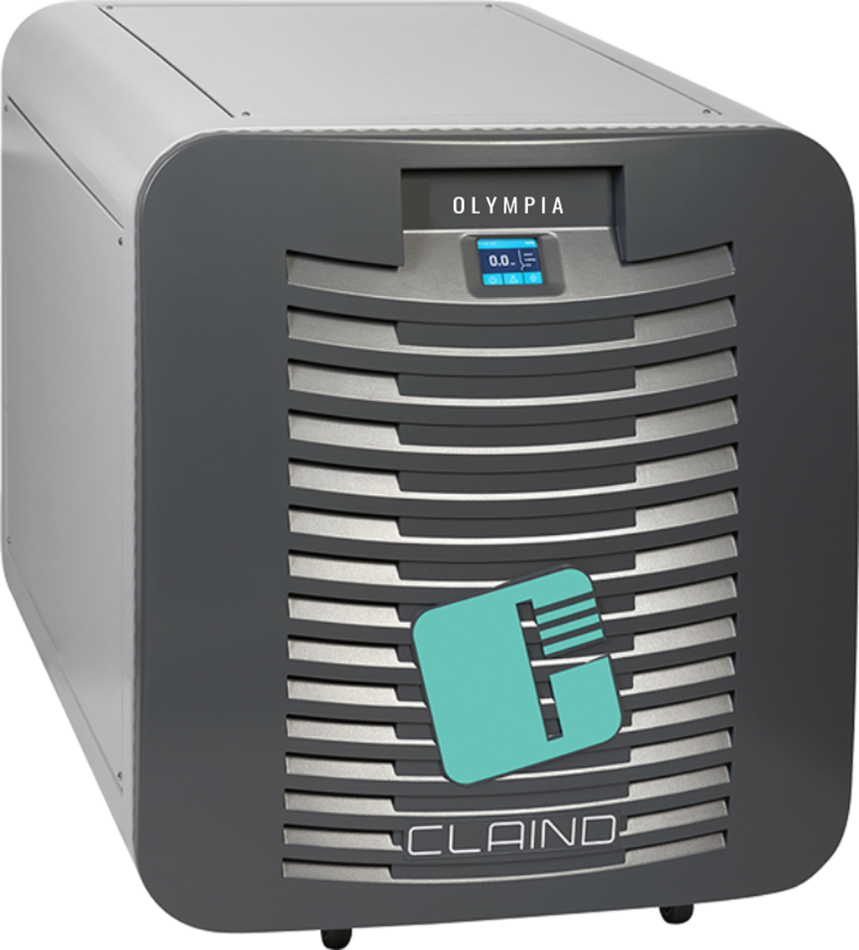

OLYMPIA N70-1

HIGH-CAPACITY NITROGEN GENERATORVARIABLE SPEED
• Automatic speed regulation proportional to the flow delivered
SILENT
• Special soundproofing and anti-vibration solutions, designed specifically for the laboratory
ENERGY SAVING
• -30%* energy consumption, thanks to sophisticated power optimization software
LOW MAINTENANCE COSTS
• Less engine stress and longer compressor life thanks to the variable speed and low running temperature
TECHNICAL
• Equipped with "Scroll" Oil Free technology and built- in membrane dryer
REMOTE CONTROL
• Remote connection to any device with the IoT Claind4You platform
*compared to equivalent systems

NITROGEN RESULTS

Kindly enter your email address to view your result.

OLYMPIA an60-1

NITROGEN AND DRY AIR GENERATORVARIABLE SPEED
• Automatic speed regulation proportional to the flow delivered
SILENT
• Special soundproofing and anti-vibration solutions, designed specifically for the laboratory
ENERGY SAVING
• -30%* energy consumption, thanks to sophisticated power optimization software
LOW MAINTENANCE COSTS
• Less engine stress and longer compressor life thanks to the variable speed and low running temperature
TECHNOLOGICAL
• Equipped with "Scroll" Oil Free technology and built- in membrane dryer
REMOTE CONTROL
• Remote connection to any device with the IoT Claind4You platform
*compared to equivalent systems
